Description:

Features:

• A 190cc Briggs & Stratton® engine is built to deliver the strength to power through your yard
• Large 23-in. all-steel deck is designed to allow you to mow efficiently with 3-in-1 bagging, side discharge and mulching capabilities
• Rear-wheel drive provides strong control on uneven terrain
• 9-in. front and rear wheels with Cub Cadet® tread designed for excellent mobility
• MySpeed™ drive control system delivers six speeds of control, easy engagement and adjusts to your pace.

Specifications:

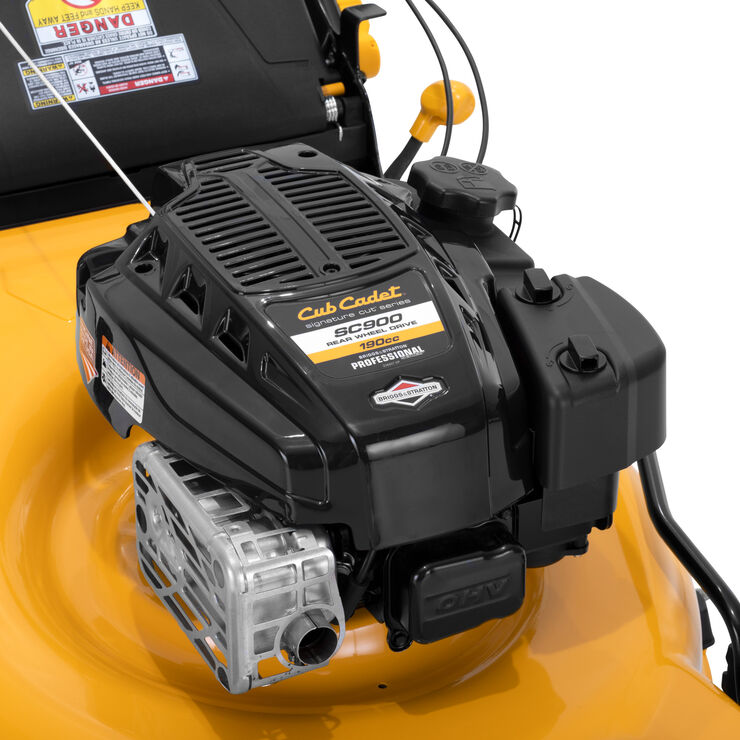

Engine

• Brand: Briggs & Stratton
• Model: 875 Pro
• Model Number: 125P02-0070
• Displacement: 190cc
• Starter Type: Recoil
• Fuel Tank Capacity: 1.0 quart
• Oil Capacity: 20 ounces
• Choke: Readystart

Drive System

• Type: Rear-Wheel Drive (RWD)

Cutting Deck

• Cutting Width: 23 inches
• Material: Steel
• Deck Wash: Yes
• Height Range: 1.25" - 3.75"
• Positions: 6
• Height Adjustment: Single-Lever
• Cutting System: Signature Cut
• Mulch Plug: Integrated
• Discharge Location: Rear

Warranty

• General Warranty: 4-year limited
• Commercial Warranty: No

Controls

• Handle: Quick Adjust
• Drive Controls: Cub Cadet MySpeed

Wheels

• Tread Pattern: Aggressive
• Front Wheels: 9 inches
• Rear Wheels: 9 inches
• Bearing Type: Poly Bushing

Additional Specifications

• Model Number: 12ABR27B710

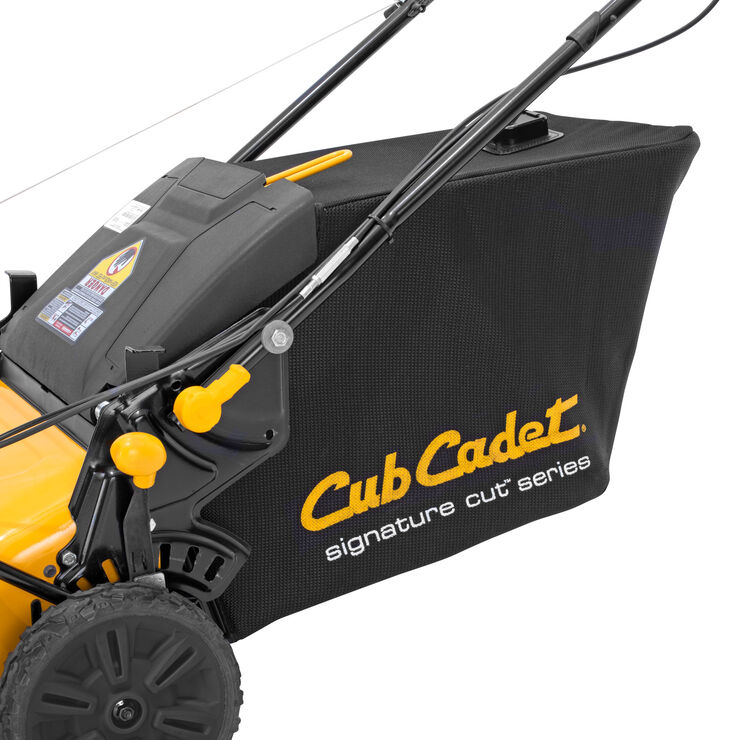

Grass Collector

• Capacity: 3.1 Bushels
• Type: Dust Blocking with Indicator
