Description:

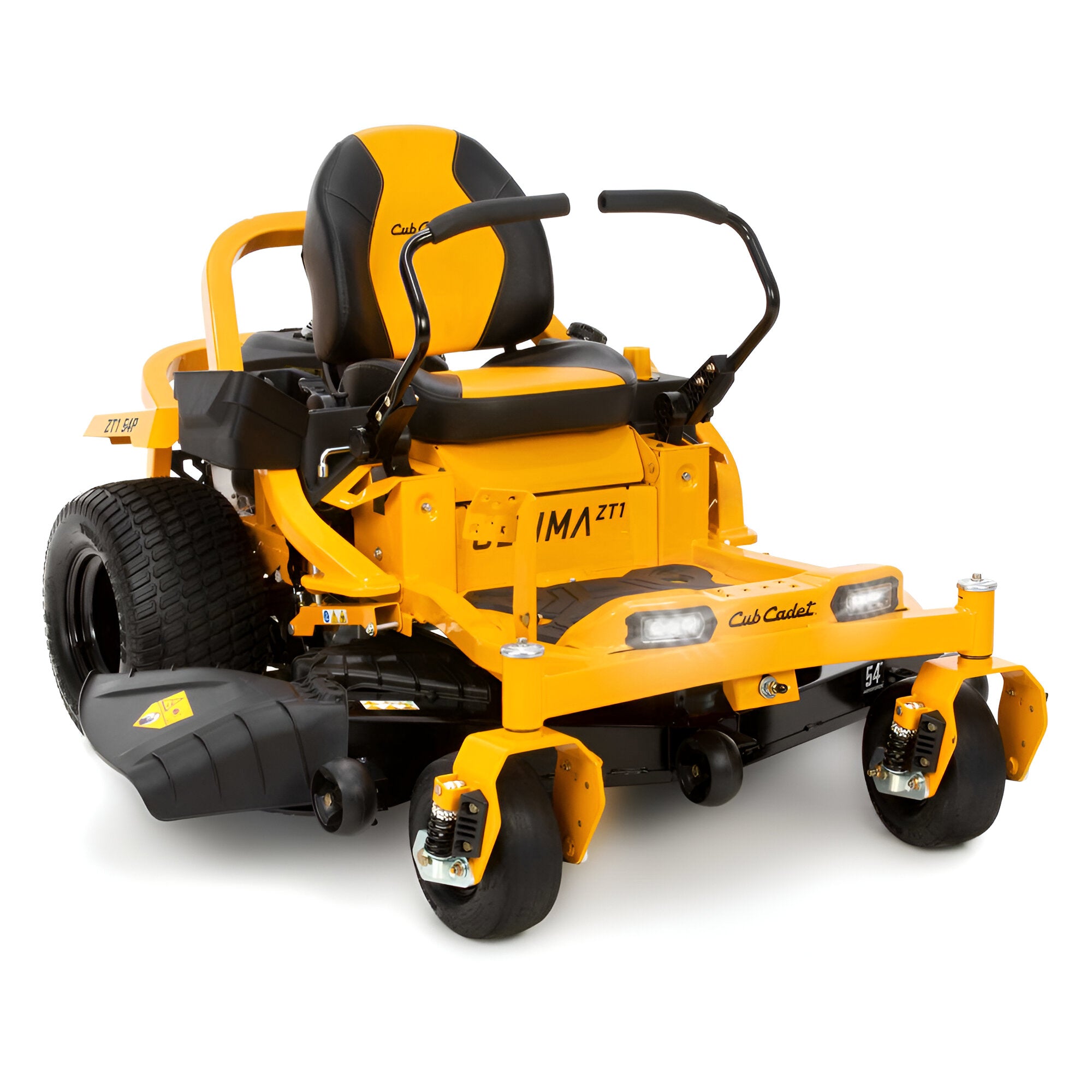

The Cub Cadet® Ultima Series ZT1 54P is a 54-inch zero-turn lawn mower with a 23 HP engine and an AeroForce™ fabricated deck. It is built to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its durable tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

Features:

• A premium 23 HP/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Ride in ultimate comfort thanks to a front caster suspension that delivers up to 770 lbs. of shock absorption to help reduce vibration*
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Specification:

Engine:

• Engine Brand: Kawasaki®
• Engine Model: FR Series 691V
• Engine Model Number: 691V
• Engine Displacement: 726cc
• Engine Output: 23HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US (2 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery:

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System:

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck:

• Deck Cutting Width: 54 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: Three gauge wheels
• Deck Positions: 15

Chassis:

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS (Roll Over Protection System): No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls:

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort:

• Seat Type: 20" high back
• Armrests: No
• Seat Adjustment: Knob
• Front Caster Suspension: Yes

Wheels:

• Rear Tires: 20''x 12''- 8''
• Front Tires: 11"x 6"-5"
• Tire Tread: Turf Master / Multi Trac

Specifications:

• Series: Ultima Series™ ZT
• Additional Specifications:
• Hour Meter: Available Separately
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 17AIEACMA10

Warranty:

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: No
