Description:

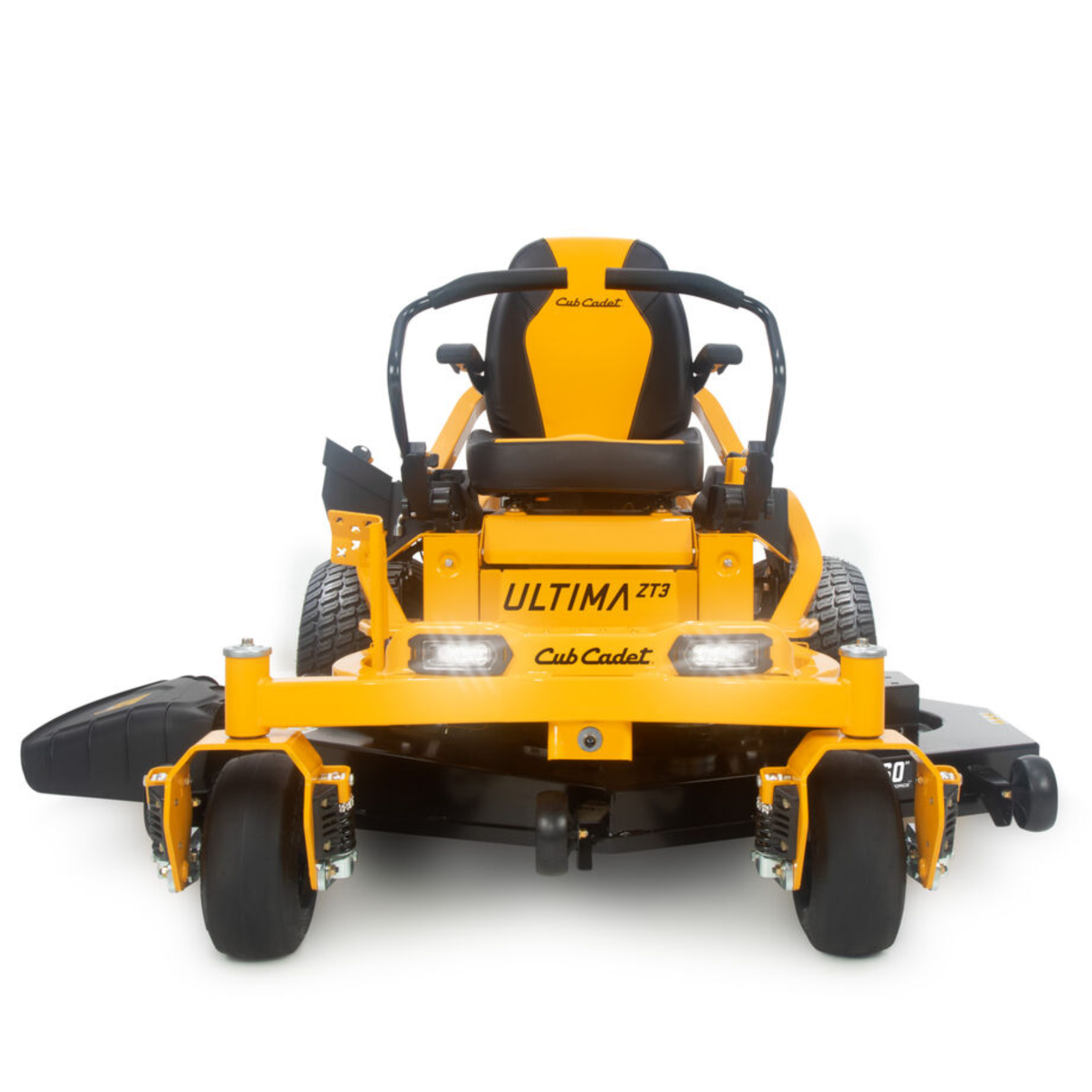

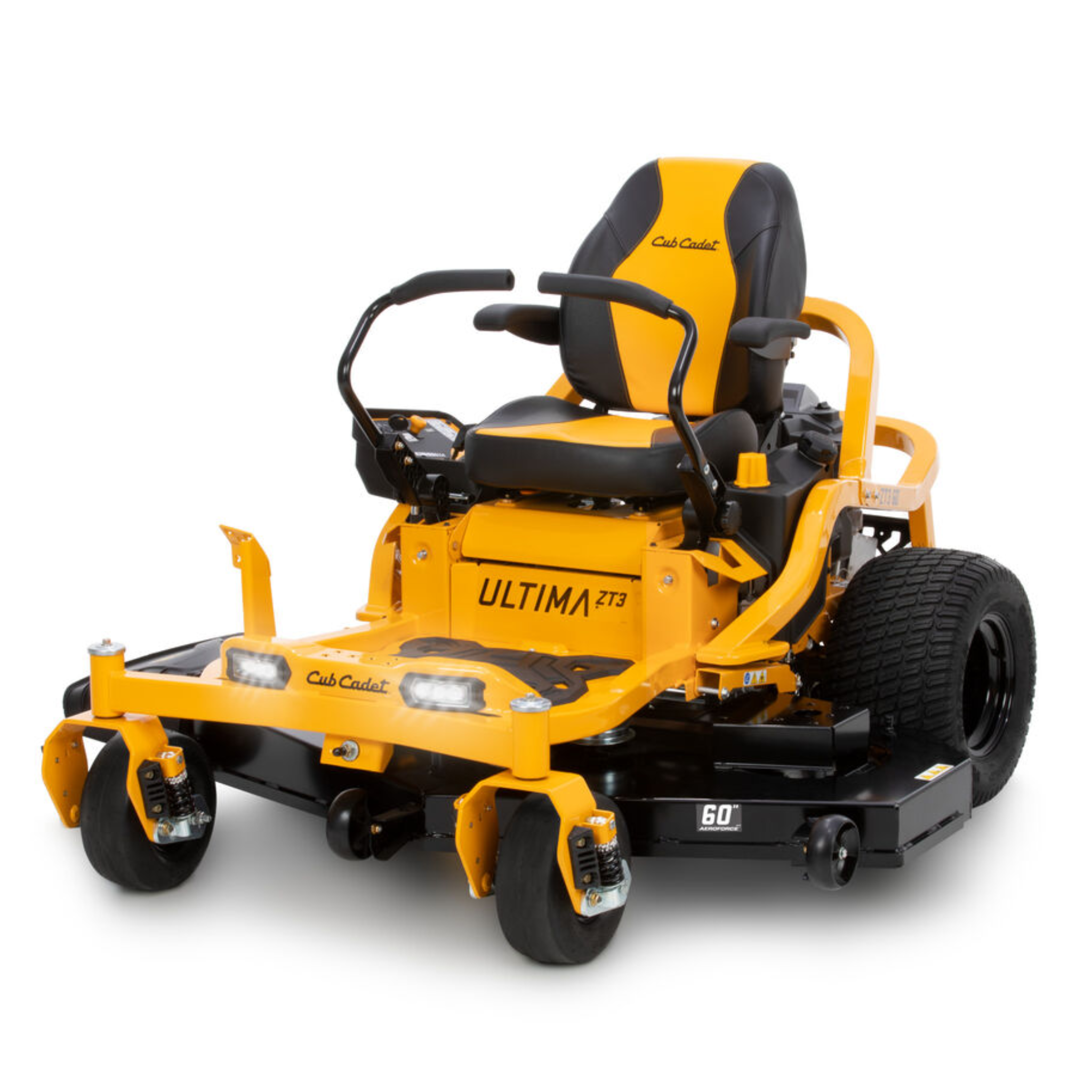

The Cub Cadet® Ultima Series ZT3 60 is a 60-inch zero-turn lawn mower with a 24 HP engine and an AeroForce™ reinforced fabricated deck. It is built to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its strong tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

Features:

• A premium 24 HP*/725cc Kawasaki FS730V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Ride in ultimate comfort thanks to a front caster suspension that delivers up to 770 lbs. of shock absorption to help reduce vibration*
• Cut comfortably at your maximum speed with automotive-inspired, fully adjustable premium 24 in. high back seat with cushioned armrests, ball-bearing seat slide and advanced polymer seat isolators.
• 60-in. AeroForce fabricated deck with heavy-duty reinforced leading edges and cutting system that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Specification:

Engine

• Brand: Kawasaki®
• Model: FS Series
• Model Number: 730V
• Displacement: 726cc
• Horsepower: 24HP
• Starter Type: Electric
• Fuel Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Oil Capacity: 2.1 qt. US (2 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Tuff Torq TZ 450
• Drive Type: Hydrostatic
• Forward Speed: 7.5 MPH / 12.0 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Width: 60 in
• Material: 11-gauge reinforced steel
• Construction: Fabricated
• Blade Count: 3
• Blade Engagement (PTO): Electric
• Deck Lift: Foot pedal with dial adjust
• Cutting Height Range: 1" - 4.5"
• Positions: 15
• Deck Wash Port: No
• Anti-Scalping Wheels: 3

Chassis

• Frame: 2" x 2" tubular steel
• Turning Radius: 0° (zero-turn)
• ROPS: No
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Comfort

• Steering Control: Lap Bars
• Brakes: Disc
• Cruise Control: No
• Seat: 24" high-back with armrests
• Seat Adjustment: Lever
• Caster Suspension: Yes

Wheels

• Rear Tires: 20" x 12"-10"
• Front Tires: 11" x 6"-5"
• Tread Type: Turf Master / Multi Trac

Additional Features

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Integrated with lap bars

Model & Warranty

• Model Number: 17AZEAC5A10
• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: Not applicable
