Description:

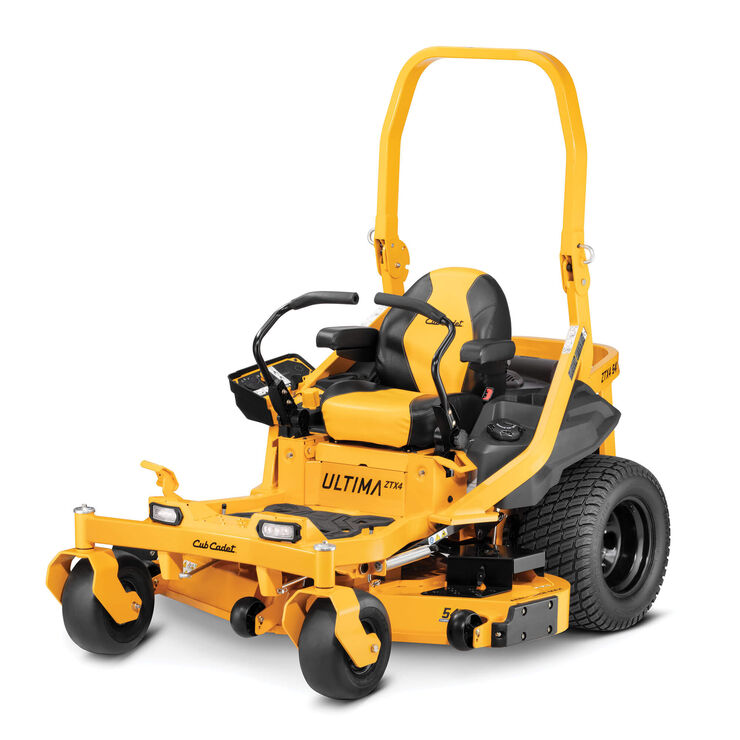

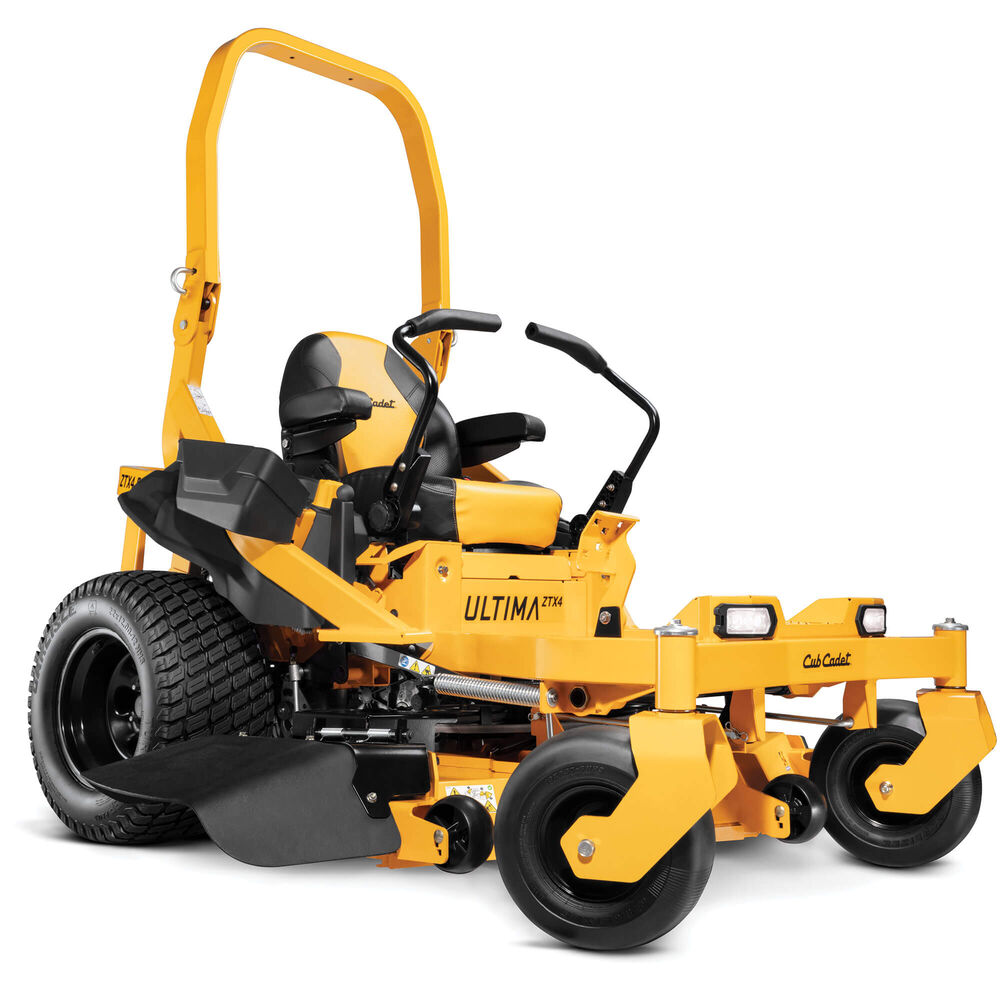

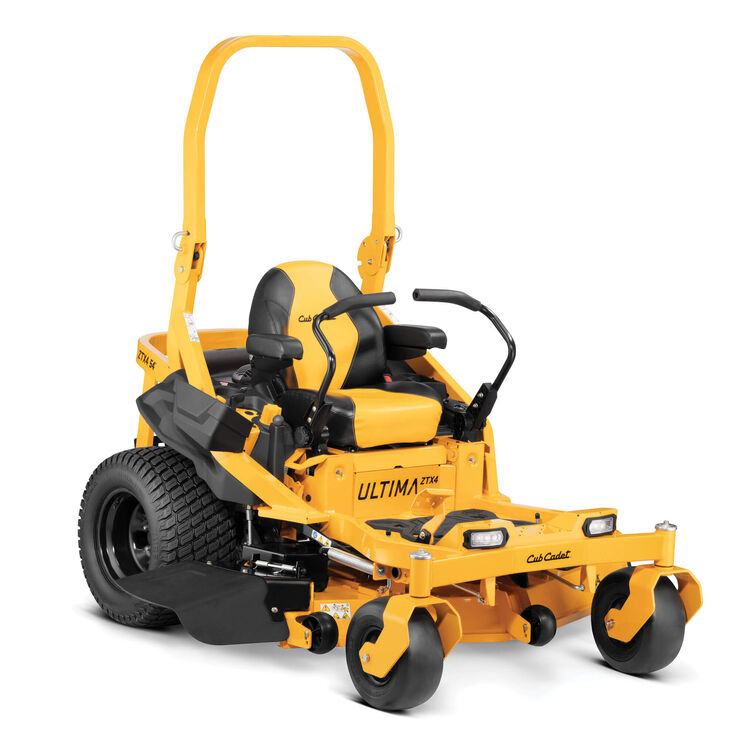

The Cub Cadet® Ultima Series ZTX4 54 is a 54-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made with 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.

Features:

• 26 HP* 747cc Kohler® KT-Pro 7000 series V-twin OHV engine built for reliable starting and a quiet operation
• Dual hydrostatic transmissions allow for 8 MPH forward (3.5 MPH reverse) ground speeds
• A high-strength, continuous 1.5 in. x 3 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
• 54 in. AeroForce™ Max 10-Gauge reinforced fabricated steel cutting deck with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design that is designed to provides flawless results, mows a wide area of grass to help reduce cutting time, and helps provide your lawn with a clean, premium cut

Specifications:

Engine

• Brand: Kohler®
• Model: Pro 7000 Series
• Model Number: KT745
• Displacement: 747cc
• Output: 26 HP
• Cylinders: Twin
• Start Type: Electric (Ignition Key)
• Oil Capacity: 2.0 qt US (1.89 L)
• Lubrication: Fully pressurized
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Fuel Gauge: No
• Charging System: 12 amp regulated

Battery

• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V
• CCA: 210

Drive System

• Transmission: Hydro-Gear ZT 3100
• Drive Type: Hydrostatic
• Forward Speed: 8 MPH / 12.9 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Cutting Width: 54 in
• Deck Type: Reinforced Fabricated
• Material: 10-gauge steel + 2-gauge reinforcement
• Deck Engagement: Electric PTO
• Blades: 3
• Deck Lift: Foot Pedal with Dial Adjust
• Cutting Height Range: 1" - 4.75"
• Deck Wash Port: No
• Deck Positions: 17
• Anti-Scalping Wheels: 3 gauge wheels

Chassis & Frame

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0° (Zero-Turn)
• ROPS (Roll Over Protection System): Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Comfort

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars
• Seat Type: 20" High Back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels & Tires

• Rear Tires: 22" x 12" -12"
• Front Tires: 13" x 6.5" -6"
• Tread Type: Turf Master / Multi Trac

Lighting & Extras

• Headlights: Dual LED
• Hour Meter: Yes
• Mulch Kit: Available separately
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated

Model Info & Warranty

• Model Number: 47TSAAA7A10
• Series: Ultima Series™ ZTX

Warranty

• Residential Warranty: 4-year / 800 hours
• Commercial Warranty: 4-year / 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
