Description:

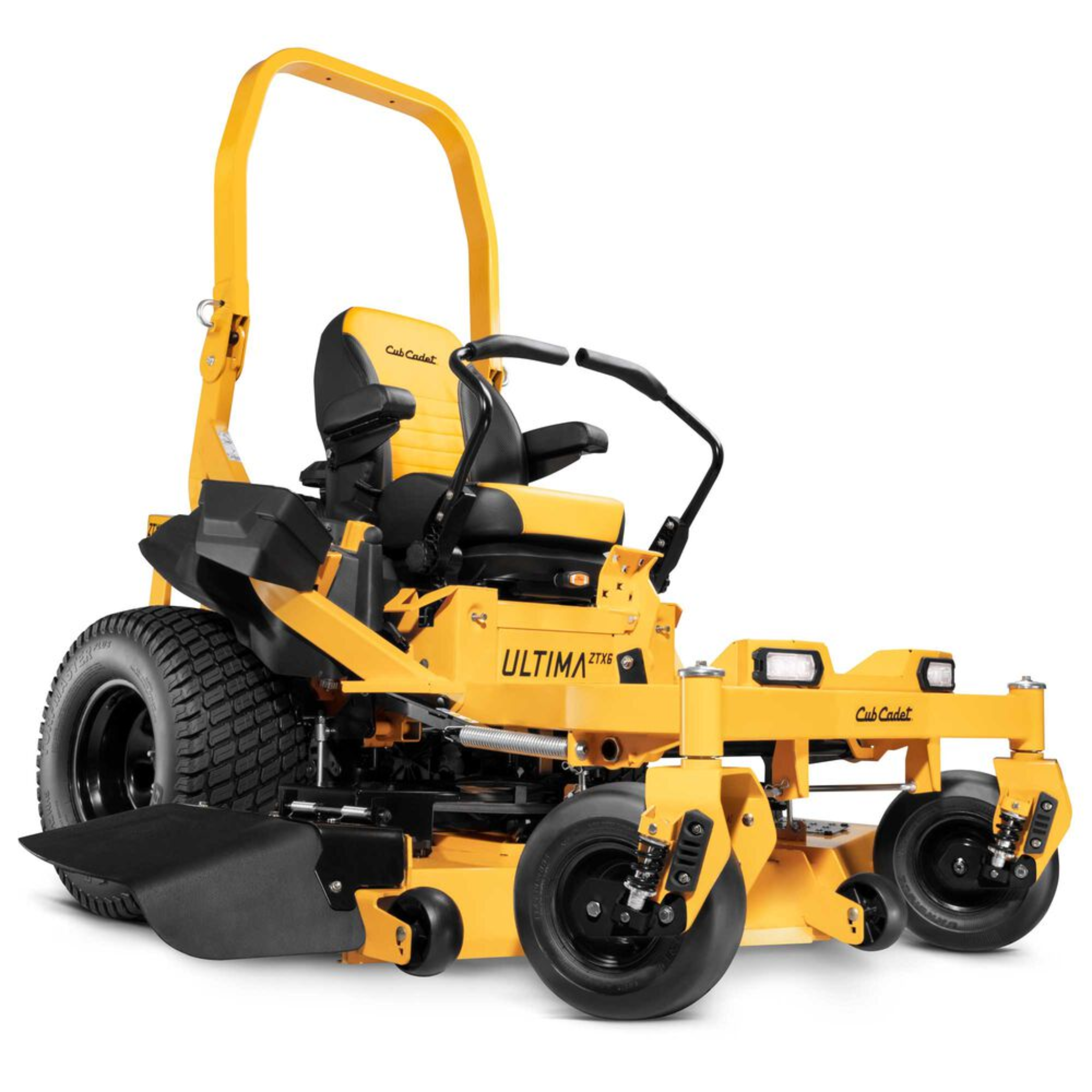

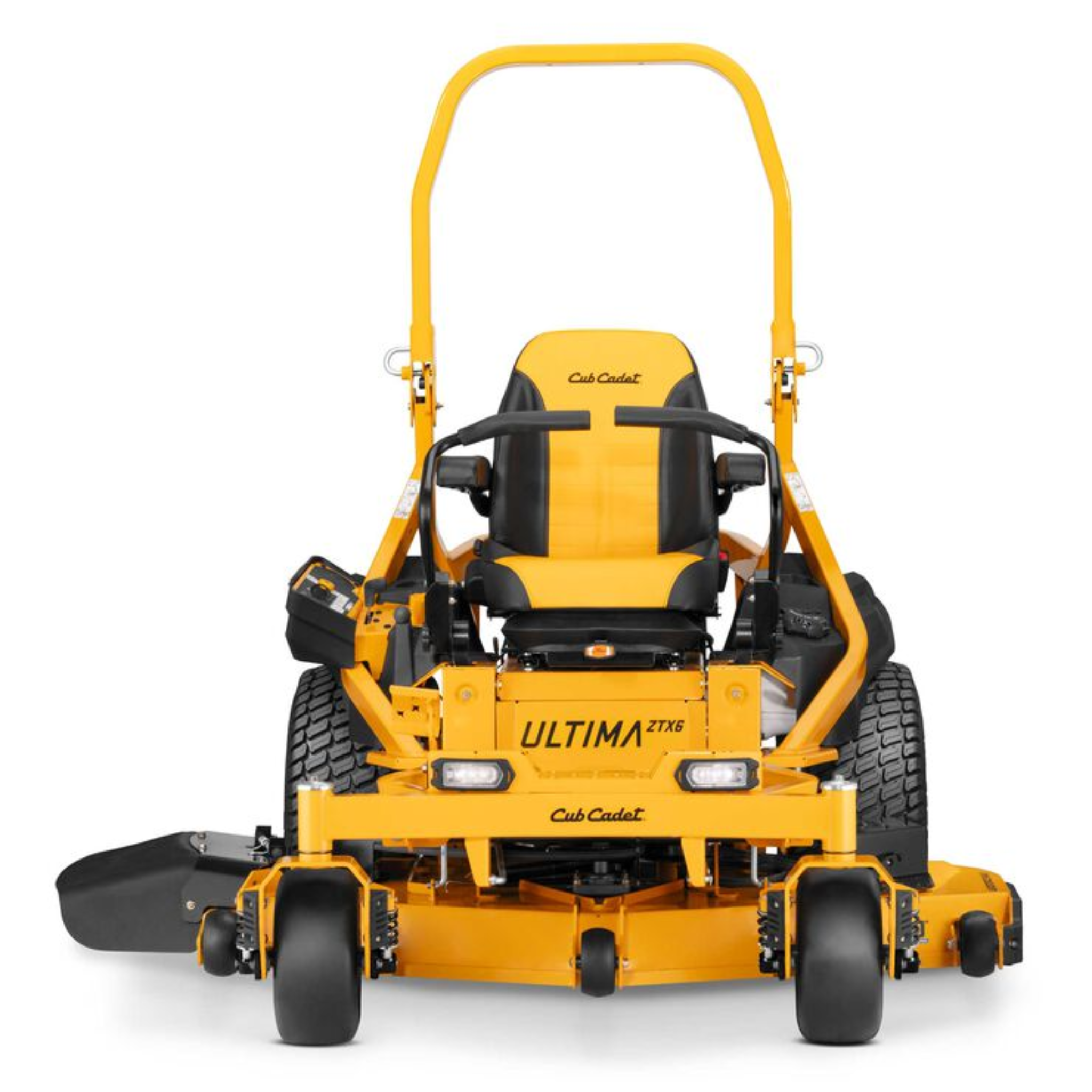

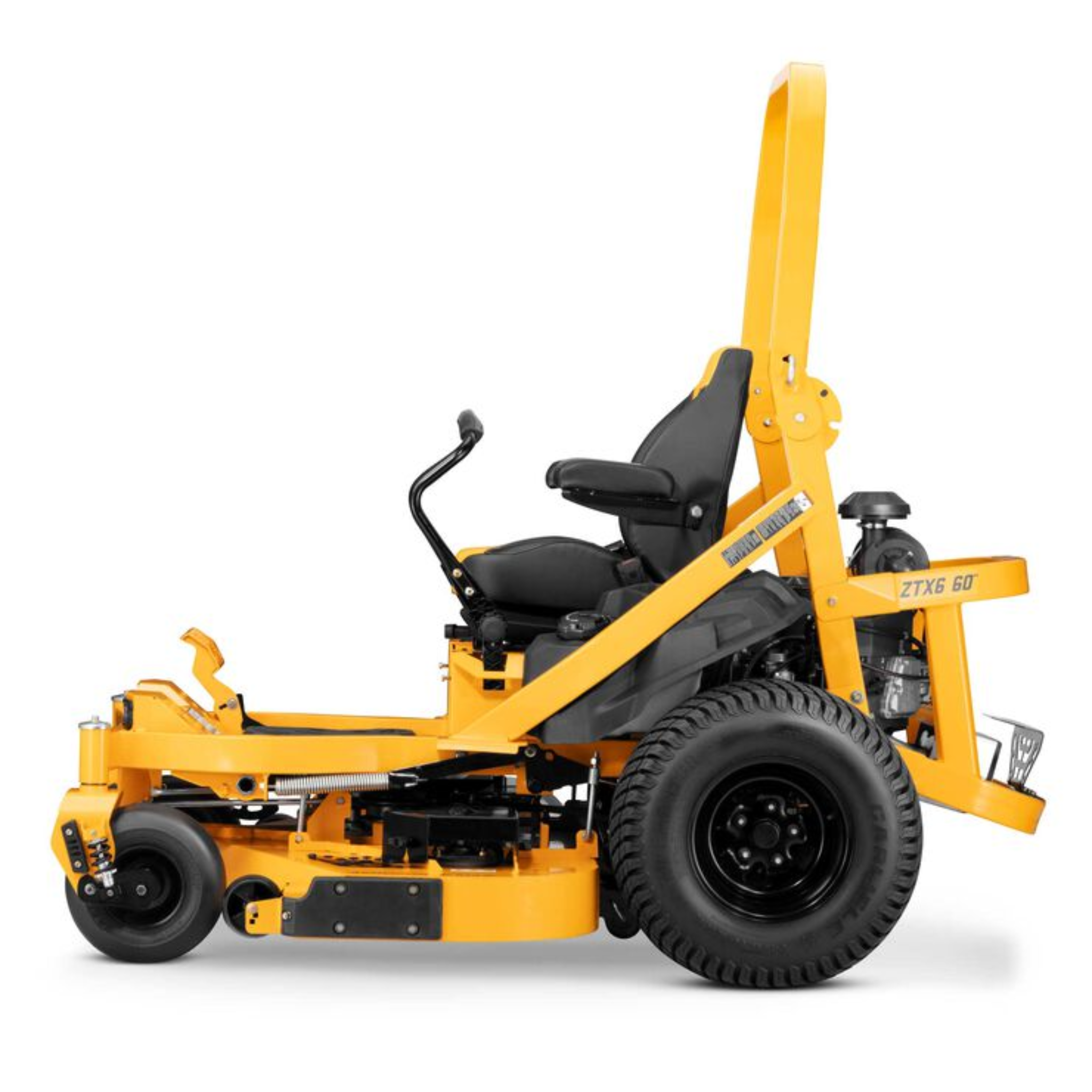

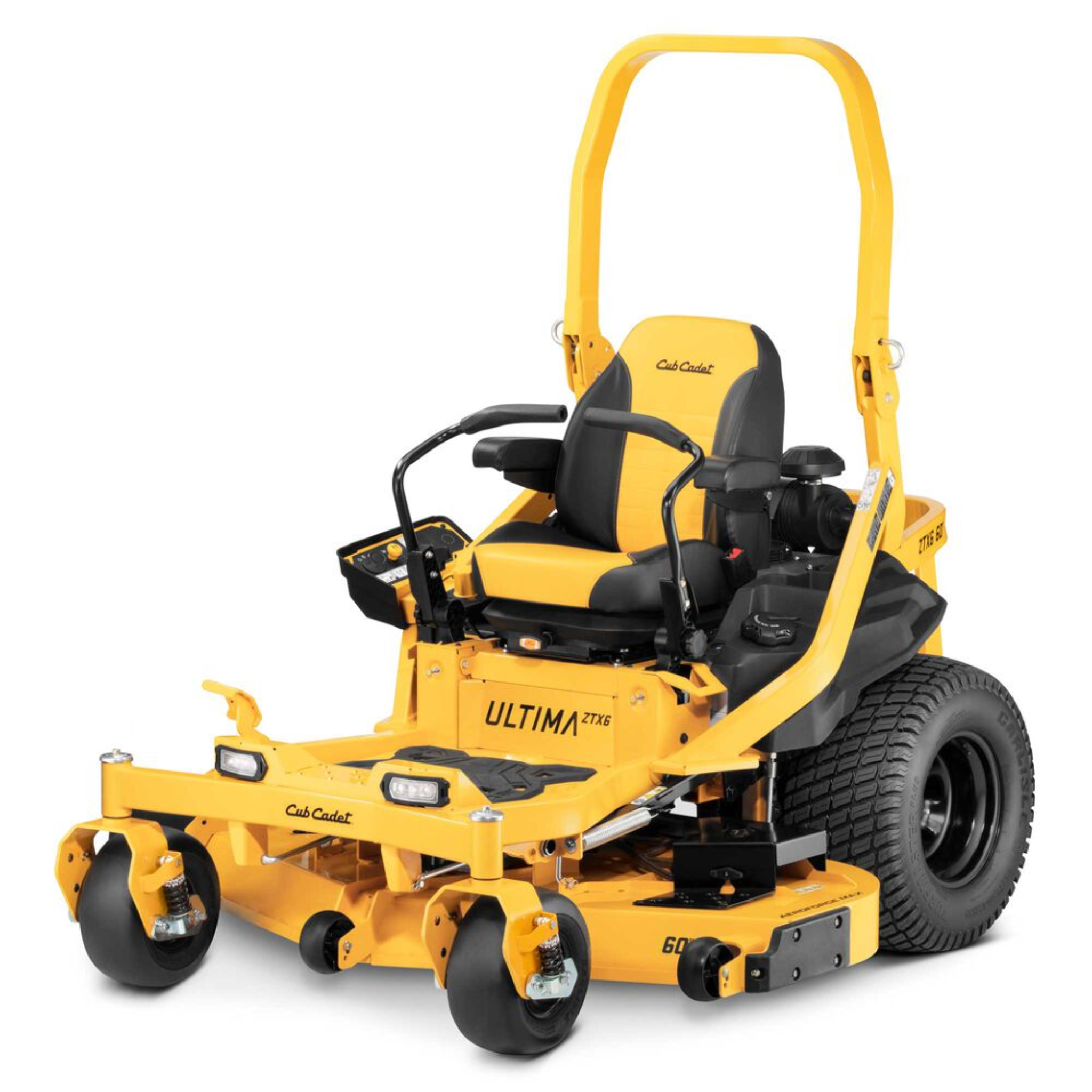

The Cub Cadet® Ultima Series ZTX6 60 is a 60-inch zero-turn lawn mower with a 25.5 HP engine. It features an AeroForce™ Max reinforced fabricated deck, which is designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.

Features:

• A high-strength 1.5 in. x 3 in. tubular steel frame is built to provide optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Commercial grade 852cc/25.5HP* Kawasaki® FX801 V-Twin OHV engine designed for reliable starting and exceptionally smooth, quiet operation.
• Commercial grade dual hydrostatic rear-wheel transmissions for quick up to 9 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
• Limited 4-year/800 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell

Specification:

Engine

• Brand: Kawasaki®
• Series: FX Series
• Model Number: 801V
• Displacement: 852cc
• Horsepower: 25.5 HP
• Starter: Electric (Ignition Key)
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Oil Capacity: 2.1 qt US (2.0 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3400 Charged
• Type: Hydrostatic
• Forward Speed: 9 MPH / 14.5 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Cutting Width: 60 in
• Material: 10-gauge steel with 2-gauge reinforcement
• Deck Type: Reinforced Fabricated
• Blade Engagement: Electric PTO
• Blade Count: Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1" – 4.75"
• Deck Height Positions: 17
• Deck Wash: No
• Anti-Scalping Wheels: Three

Chassis & Frame

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0°
• ROPS: Yes
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Operation

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars
• Parking Brake: Integrated into lap bars

Comfort & Ergonomics

• Seat Type: 24" High-back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: Yes

Wheels & Tires

• Rear Tires: 24" x 12"-12"
• Front Tires: 13" x 6.5"-6"
• Tread: Turf Master / Multi Trac

Additional Features

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes

Model & Warranty

• Model Number: 47TIAHA8A10
• Series: Ultima Series™ ZTX
• Residential Warranty: 4-year / 800 hours
• Commercial Warranty: 4-year / 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
