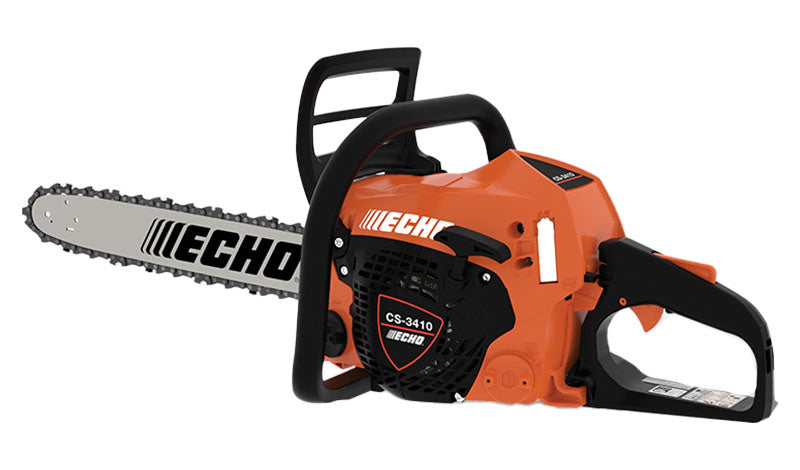

Echo CS-3410-16 in.Chainsaw

FEATURES

• 34.4 CC PROFESSIONAL-GRADE, 2-STROKE ENGINE: For outstanding performance and durability
• LIGHTEST CHAINSAW IN ITS CLASS: High power-to-weight ratio reduces fatigue and increase productivity
• I-30™ STARTING SYSTEM: Reduces starting effort by 30%
• INTEGRATED CHOKE AND FAST IDLE: Trigger release mechanism allows for fast starts
• TRANSLUCENT FUEL AND OIL TANKS: For quick fuel and oil level checks
• AUTOMATIC CLUTCH-DRIVEN OILER: Operates only when the chain is moving to reduce oil consumption
• MOMENTARY STOP SWITCH: Automatically returns to "ON" position
• SIDE-ACCESS CHAIN TENSIONER: For easy chain adjustments
• PURGE BULB: Delivers fresh fuel to carburetor for easier starts

SPECIFICATIONS

GENERAL INFORMATION

Manufacturer

Echo

Model

CS-3410 - 16 in.

Model Code

NA

Color

Orange

BODY

Housing

Sprocket cover - Plastic

Sprocket type - Spur

Handle

Plastic

DIMENSIONS

Length

Available bar - 16 in.

Weight

Dry - 8.2 lb.

ENGINE

Engine

Professional-grade, 2-stroke

Displacement

34.4 cc (2.1 ci)

Starter

i-30™

Carburetion

Purge pump

Fuel Tank Capacity

9.5 fl. oz.

Oil Capacity

7.8 fl. oz.

OPERATIONAL

Guide Bars

Laminated

OTHER

Miscellaneous

Ignition system - Digital

Oiling system - Automatic Clutch-Driven

Vibration reduction system - 3-Point Spring System

Warranty

Consumer - 5 year

Commercial - 1 year
