Description:

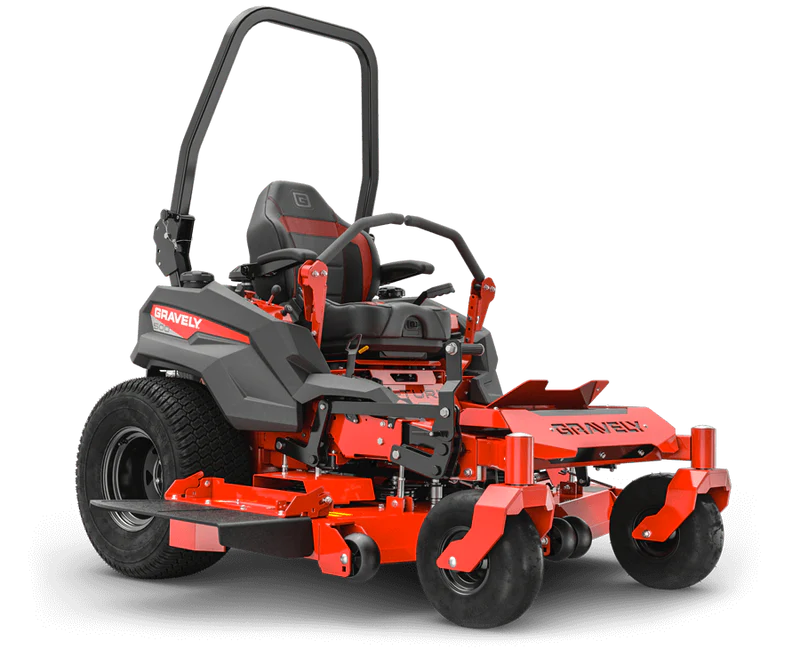

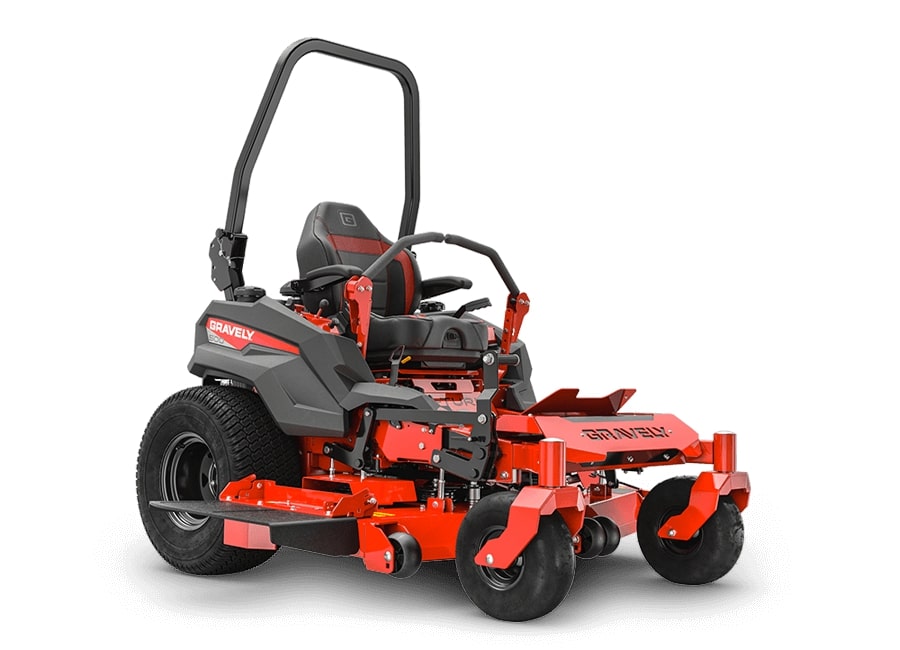

Gravely Pro-Turn® 560 Kawasaki® Zero-Turn Mower

This is the Pro-Turn® 500. A commercial-grade mower for professionals who want rugged durability without sacrificing features and performance. Better seating, better tires, better mowing deck, and a better transmission make the Pro-Turn 500 the better choice.

Specifications:

Model Number: 992511

Power Train

• Engine: Kawasaki® FX921V
• Horsepower: 31 hp
• Engine Displacement: 61 in³ / 999 cc
• Fuel System: Gasoline
• Fuel Capacity: 12.5 gal / 47.3 L
• Drive System: Hydrostatic
• Transmission Type: Hydrostatic
• Brake Type: Lever Activated Parking Brake
• Driver Position: Sit-down
• Ground Speed (Forward): 15 mph / 24.1 kph
• Ground Speed (Reverse): 6 mph / 9.7 kph
• Wheels (Front): 15.0 x 6.0 in – 6.0 in (38.1 x 15.2 cm – 38.1 cm)
• Wheels (Rear): 26.0 x 12.0 in – 12.0 in (66.0 x 30.5 cm – 30.5 cm)
• Front Wheel Track: 42.3 in
• Rear Wheel Track: 55 in / 139.7 cm

Electric

• Battery Capacity: 300 CCA
• Number of Batteries: 1
• Battery Voltage: 12 V
• Battery Type: Lead Acid – Maintenance Free
• Battery Size: U1

Deck

• Deck Size: 60 in / 152.4 cm
• Coverage per Hour: 9 acres / 3.6 hectares
• Spindle Type: Mechanical
• Deck Material: 7-gauge steel
• Deck Construction: Fabricated X-Factor® 3
• Discharge Configuration: Side discharge
• Cutting Height Range: 1 in – 5.5 in / 2.5 cm – 14 cm
• Cutting Width: 60 in / 152.4 cm

Dimensions

• Assembled Weight: 1,487 lb
• Overall Length: 84 in / 213.4 cm
• Width (Chute Up): 63 in / 160 cm
• Width (Chute Down): 75 in / 190.5 cm
