Description

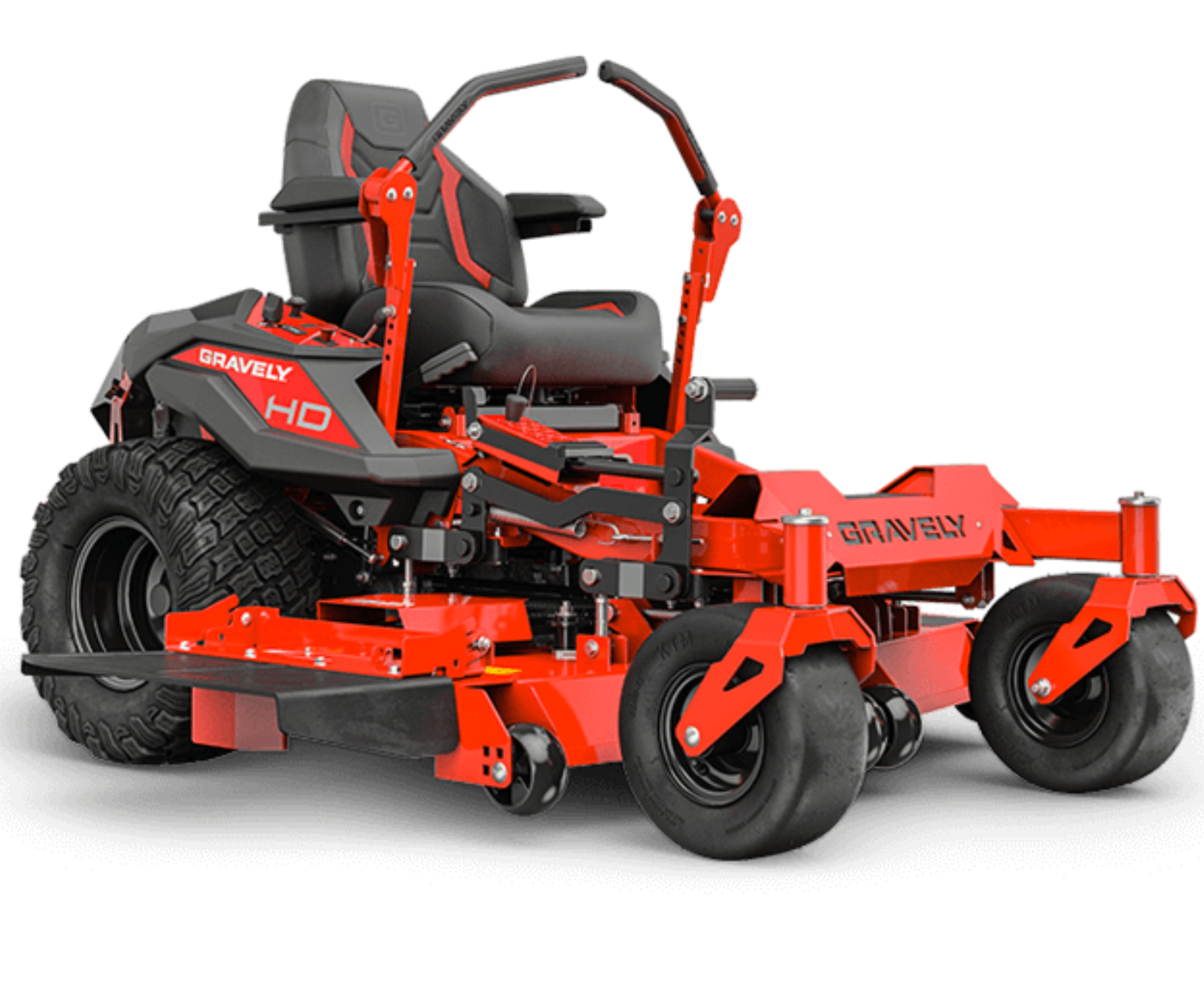

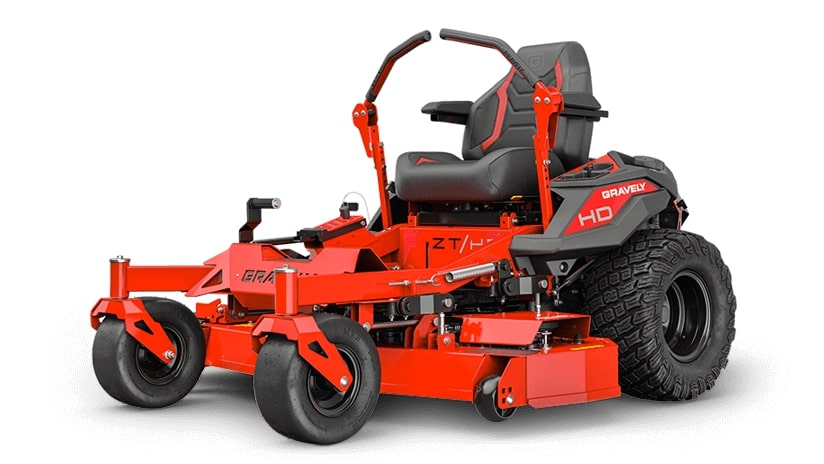

For homeowners who don’t just want to mow their lawn but prefer to manicure it. After all, this is a residential mower often mistaken for a commercial unit. It has the power, durability, and high performance that lawn aficionados demand – causing them to ask whether or not their lawn is worthy of such a machine.

Specifications:

Power Train

• Engine: Kawasaki® FR691V
• Horsepower: 23 hp
• Engine Displacement: 44.3 in³ / 726 cc
• Fuel Capacity: 5.1 gal / 19.3 liters
• Drive System: Hydro-Gear® ZT-3100® Transaxles
• Transmission Type: Hydrostatic
• Brake Type: Lever-Activated Parking Brake
• Driver Position: Sit-down
• Ground Speed (Forward): 8 mph / 12.9 kph
• Ground Speed (Reverse): 4 mph / 6.4 kph
• Wheels – Front: 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm)
• Wheels – Rear: 22.0 x 11.0 in – 10.0 in (55.9 x 27.9 cm – 25.4 cm)

Electric

• Battery Capacity: 190 CCA
• Number of Batteries: 1
• Battery Voltage: 12V
• Battery Type: AGM
• Battery Size: U1 Compatible

Deck

• Deck Size: 52 in / 132.1 cm
• Coverage per Hour: 4.2 acres / 1.7 hectares
• Spindle Type: Mechanical
• Deck Material: 7-gauge steel
• Deck Construction: Fabricated X-Factor® 3
• Discharge Configuration: Side discharge
• Cutting Height Range: 1.5 in – 5 in / 3.8 cm – 12.7 cm
• Cutting Width: 52 in / 132.1 cm

Dimensions

• Weight (Assembled): 817 lb
• Length: 79 in / 200.7 cm
• Width (Chute Up): 56.2 in / 142.7 cm
• Width (Chute Down): 67.3 in / 170.9 cm
