Description:

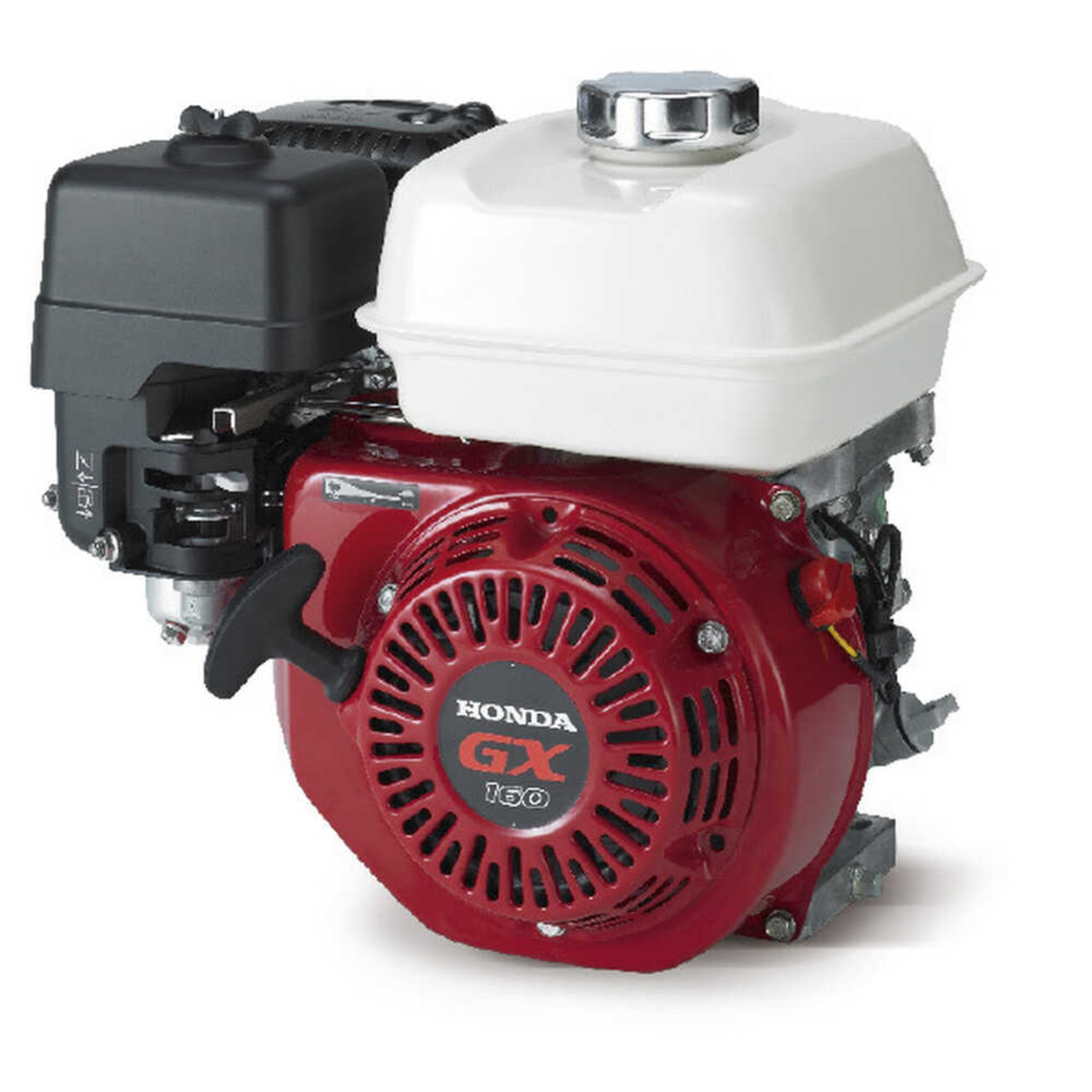

The GX160 engine is suitable for a wide range of heavy duty applications such as in construction equipment, tillers, generators, welders, pumps and other industrial applications.

Engine features:

• OHV design enhances combustion efficiency
• High power-to-displacement ratio
• Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
• High quality materials and purpose-built components which ensure reliable, long-term use
• Meets world's most stringent environmental legislation
• Low fuel and oil consumption
• Reduced vibration and noise levels

Specification:

Engine Type:

• 4-stroke single cylinder
• OHV (Overhead Valve) petrol engine
• 25° inclined cylinder
• Horizontal shaft

Cylinder Sleeve Type:

• Cast iron sleeve

Bore x Stroke:

• 68 x 45 mm

Displacement:

• 163 cm³

Compression Ratio:

• 9.0 : 1

Net Power:

• 3.6 kW (4.8 HP) at 3600 rpm

Continuous Rated Power:

• 2.5 kW (3.4 HP) at 3000 rpm
• 2.9 kW (3.9 HP) at 3600 rpm

Max. Net Torque:

• 10.3 Nm (1.05 kgfm) at 2500 rpm

Ignition System:

• Transistorized

Starter:

• Recoil (electric start optional)

Fuel Tank Capacity:

• 3.1 Liters

Fuel Consumption at Continuous Rated Power:

• 1.4 L/h at 3600 rpm

Engine Oil Capacity:

• 0.6 Liter

Dimensions (L x W x H):

• 312 x 362 x 346 mm

Dry Weight:

• 15.1 kg
