Description:

Powerful. Reliable. Durable.

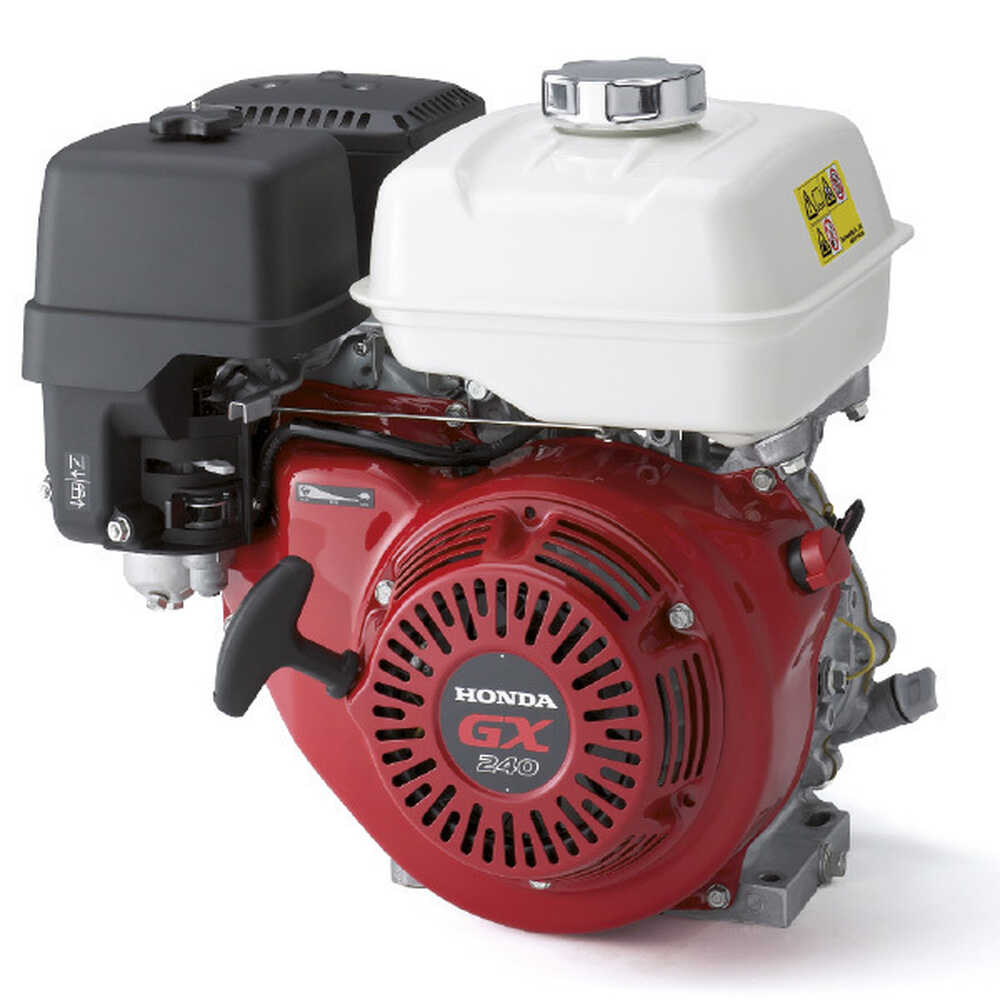

With the GX240 and 270, you’re looking at some of the best engines in the business. Powerful, Reliable, Durable, and Quiet. Honda’s GX Series is power you can trust, and then some.

• COMMON APPLICATIONS
• Pressure washers
• Commercial lawn and garden equipment
• Tillers / cultivators
• Generators
• Construction / industrial equipment
• Agricultural equipment
• Small vehicles
• Water pumps

Features:

Fuel Efficient, High Output Operation:

• Digital CDI ignition system with variable timing for optimized performance.
• Increased compression ratio for higher power output and fuel efficiency.
• Precision camshaft design for precise valve timing and optimal fuel economy.
• OHV design enhances efficiency and power transfer.

Smooth Performance:

• Precision engineered components reduce vibration.
• Ball bearing supported crankshaft and heavy-duty balancer shaft ensure stability.
• Improved piston design contributes to smoother operation.

Exceptionally Quiet:

• Large capacity, multi-chamber exhaust system minimizes exhaust noise.
• Enhanced camshaft and muffler reduce overall engine noise by up to 5 dB.
• Forged steel crankshaft and rigid crankcase reduce mechanical noise.
• Helical cut gears and sophisticated air intake system contribute to quieter operation.

Proven Reliability:

• Oil Alert system to protect the engine from low oil situations.
• Cast iron cylinder sleeve ensures durability.
• High-quality materials and finish enhance longevity.
• Dual element air cleaner for effective filtration.
• 3-Year Limited Warranty provides peace of mind.

Easy to Use and Maintain:

• Simple throttle control for user convenience.
• Large fuel tanks with automotive type fuel cap for easy refueling.
• Dual oil drains and fills for maintenance ease.
• Heavy-duty control box is easy to operate.
• Easily accessible spark plug simplifies maintenance tasks.

Easy Starting:

• Heavy-duty recoil starter for reliable starting.
• Automatic mechanical de-compression system aids in starting.
• Variable ignition timing optimizes starting performance.

Emissions Compliant:

• EPA certified for emissions compliance.
• No catalyst necessary, simplifying emissions control.

Available Options:

• Low profile versions available for specific applications.
• Gear reduction options for varied torque requirements.
• Electric start option for easier starting.
• Spark arrester available for safety.
• Charge and lamp coils with multiple output options.
• Cyclone Air Cleaner available on select models for enhanced filtration.

Specification:

Engine Type:

• 4-stroke single cylinder
• OHV (Overhead Valve) petrol engine
• 25° inclined cylinder
• Horizontal shaft

Cylinder Sleeve Type:

• Cast iron sleeve

Bore x Stroke:

• 77 x 58 mm

Displacement:

• 270 cm³

Compression Ratio:

• 8.5 : 1

Net Power:

• 5.9 kW (7.9 HP) at 3600 rpm

Continuous Rated Power:

• 4.1 kW (5.5 HP) at 3000 rpm
• 4.6 kW (6.1 HP) at 3600 rpm

Max. Net Torque:

• 18.3 Nm (1.86 kgfm) at 2500 rpm

Ignition System:

• Digital CDI with variable ignition timing

Starter:

• Recoil (electric start optional)

Fuel Tank Capacity:

• 5.3 Liters

Fuel Consumption at Continuous Rated Power:

• 2.2 L/h at 3600 rpm

Engine Oil Capacity:

• 1.1 Liter

Dimensions (L x W x H):

• 381 x 428 x 422 mm

Dry Weight:

• 25.8 kg
