Description:

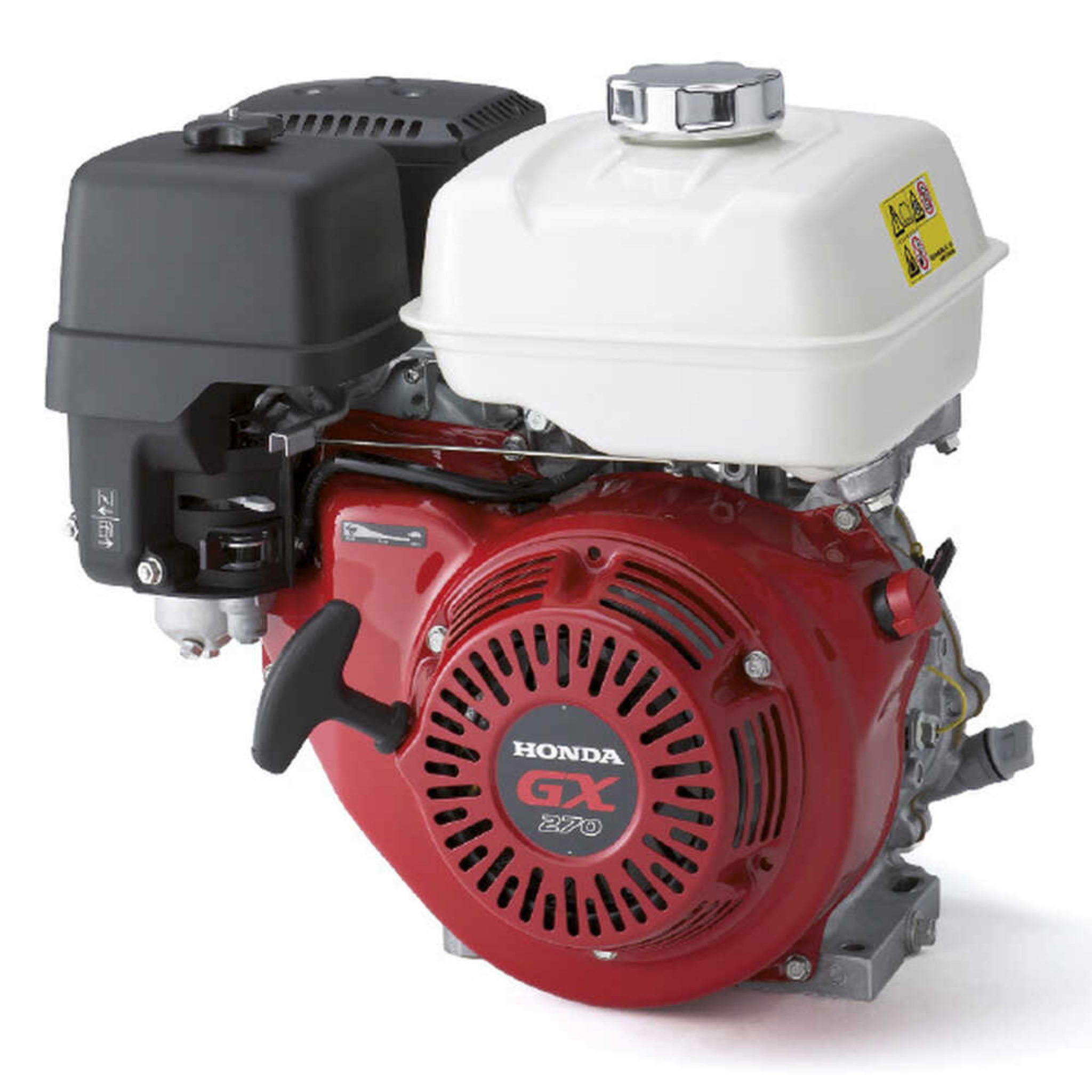

The GX270 engine is suitable for a wide range of heavy-duty applications such as construction equipment, tillers, generators, welders, pumps and other industrial applications.

Engine features:

• The OHV design enhances combustion efficiency
• A variable ignition timing (digital CDI) results in high power output, reduced fuel consumption and excellent exhaust emissions performance.
• Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
• High quality materials and purpose-built components ensure reliable long-term use
• Meets world's most stringent environmental legislation
• Guaranteed low fuel and oil consumption
• Reduced vibration and noise level

Specification:

Engine Type:

• 4-stroke single cylinder OHV petrol engine
• 25° inclined cylinder
• Horizontal shaft

Cylinder Sleeve Type:

• Cast iron sleeve

Bore x Stroke:

• 77 x 58 mm

Displacement:

• 270 cm³

Compression Ratio:

• 8.5 : 1

Net Power Output:

• 6.3 kW (8.4 HP) at 3,600 rpm

Continuous Rated Power:

• 4.6 kW (6.2 HP) at 3,000 rpm
• 5.1 kW (6.8 HP) at 3,600 rpm

Max. Net Torque:

• 19.1 Nm (1.94 kgfm) at 2,500 rpm

Ignition System:

• Digital CDI with variable ignition timing

Starter:

• Recoil (electric start optional)

Fuel Tank Capacity:

• 5.3 liters

Fuel Consumption at Continuous Rated Power:

• 2.4 L/h at 3,600 rpm

Engine Oil Capacity:

• 1.1 liters

Dimensions (L x W x H):

• 381 x 428 x 422 mm

Dry Weight:

• 25.8 kg
