Description:

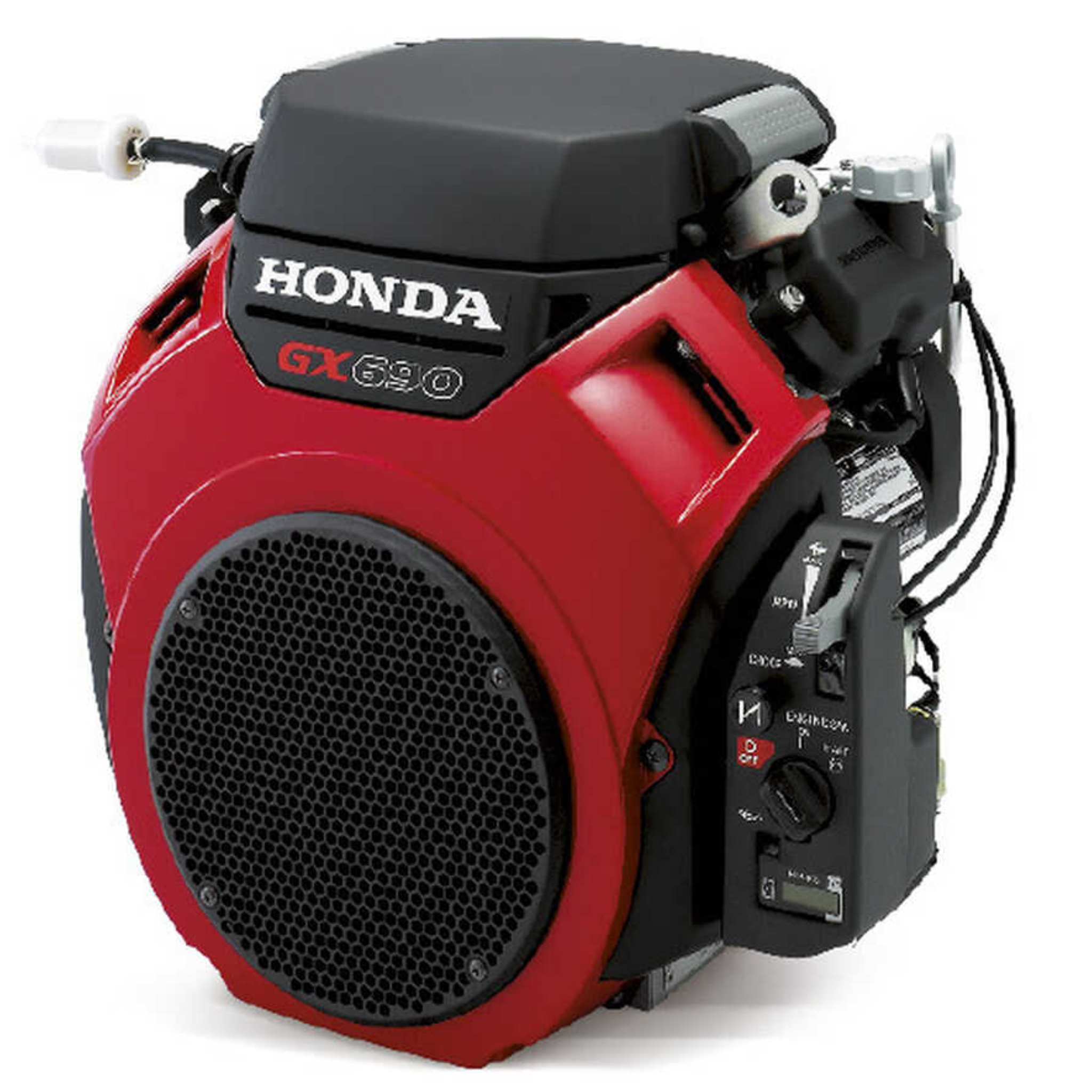

The GX690 engine is suitable for construction equipment, generators and other professional heavy-duty applications.

Engine features:

• The OHV design enhances combustion efficiency
• Variable ignition timing (digital CDI) results in high power output, reduced fuel consumption and excellent exhaust emission performance
• The high-efficiency cooling fan generates higher airflow with reduced noise levels
• High quality materials and purpose-built components ensure reliable, long-term use
• Meets world's most stringent environmental legislation
• Low fuel and oil consumption

Specification:

• Engine Type: 4-stroke 2-cylinder OHV petrol engine, 90° V-twin design, horizontal shaft
• Cylinder Sleeve Type: Cast iron sleeve
• Bore x Stroke: 78 x 72 mm (2 cylinders)
• Displacement: 688 cm³
• Compression Ratio: 9.3 : 1
• Net Power: 16.5 kW (22.1 HP) @ 3600 rpm
• Continuous Rated Power:
• 11.5 kW (15.4 HP) @ 3000 rpm
• 13.0 kW (17.4 HP) @ 3600 rpm
• Max. Net Torque: 48.3 Nm (4.93 kgfm) @ 2500 rpm
• Ignition System: Digital CDI with variable ignition timing
• Carburetor: 2-barrel, fuel cut solenoid
• Lubrication: Full-pressure
• Starter: Electric
• Fuel Consumption at Continuous Rated Power: 6.7 L/h @ 3600 rpm
• Engine Oil Capacity: 1.7 liters
• Dimensions (L x W x H): 429 x 410 x 438 mm
• Dry Weight: 44.6 kg
