Description:

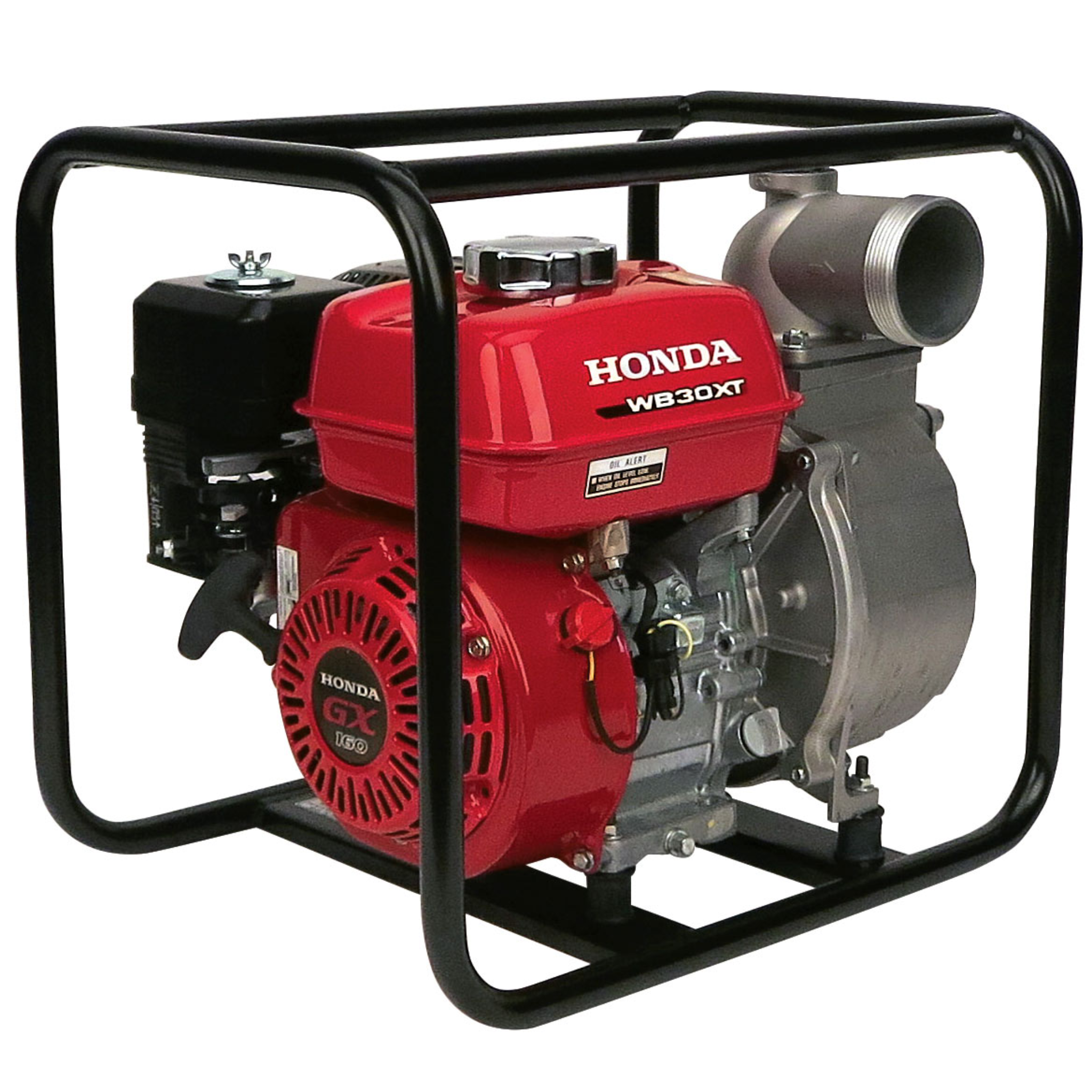

3" general purpose water pump

• 290 gal./min. capacity
• Silicon carbide mechanical seal
• Cast iron volute and impeller

Features:

• Easy Starting Honda OHV Commercial Engine:
• Powered by a durable Honda GX series commercial-grade engine, providing reliable starting and ample power for demanding conditions.
• Durable Silicon Carbide Mechanical Seal:
• Features abrasion-resistant silicon carbide seals that extend wear life, ensuring durability in challenging environments.
• 4 Vane High Efficiency Impeller:
• Honda-designed 4 vane impeller enhances performance and efficiency, improving pump output and reducing operating costs.
• Cast Iron Volute:
• Rigid-mount cast iron volute minimizes wear on the pump case, prolonging the pump's operational life.
• Heavy Duty Full Frame Protection:
• Provides robust protection for the pump and includes tie-down points for secure transport, ensuring reliability in transportation and operation.
• Isolation Mounted Engine and Pump:
• High-performance mounts reduce vibration, preventing the pump from shifting or sinking in soft soil. This design feature also enhances component durability.
• Honda Oil Alert® System:
• Integrated Oil Alert® system automatically shuts off the engine when low oil levels are detected, protecting the pump from damage.
• Large Strainer:
• The pump includes a large strainer allowing up to 8 mm (5/16 in.) solids to pass through, reducing the risk of clogging and maintaining efficient operation.

Specifications:

• Engine: GX160, 163cc
• Compression Ratio: 9.0:1
• Pump Type: Centrifugal, Self-priming
• Volute: Rigid Mounted Cast Iron
• Impeller: 4 Vane Cast Iron
• Mechanical Seal: Silicon Carbide/Silicon Carbide
• Priming Time: 150 sec @16.4 ft.
• Drive System: Direct
• Discharge Capacity: 290 gal/min
• Suction Port Diameter: 3" NPT
• Discharge Port Diameter: 3" NPT
• Total Head Lift: 85 ft.
• Suction Head Lift: 25 ft.
• Maximum Pressure: 37 psi
• Dimensions (LxWxH): 20.1" x 15.2" x 17.9"
• Dry Weight: 57 lb.
• Fuel Capacity: 0.82 gal
• Run Time @ Max Discharge: 1.9 hr
• Strainer Part #: 78325-YG4-000
• Residential Warranty: 24 months
• Commercial Warranty: 12 months
